Yamaha Outboard Parts - Steering - 30DMH (1986) | Flood Marine

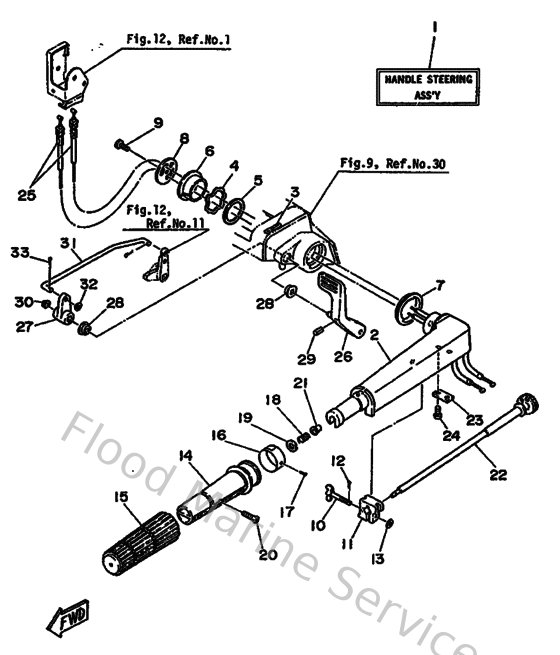

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


3
6E0441911100
Indicator, shift
Loading…

↗
4
9020635M1100
Washer, wave(6j8)
Loading…

↗
5
9020235M2400
Washer (6g1)
Loading…

↗
6
9038634M4000
Bushing (6g1)
Loading…

↗
7
9038643M6200
Bush(6J8)
Loading…

↗
8
6G1421310000
Cover, handle steering
Loading…

↗
9
970950601600
Bolt, hexagon deep recess
Loading…

↗
10
6G1421250100
Bolt, friction adjusting
Loading…

↗
11
6G1421260000
Piece, friction
Loading…

↗
12
914901601000
Pin, cotter
Loading…

↗
13
902020508800
Washer, plate (666)
Loading…

↗
14
664421190000
Grip, steering handle
Loading…

↗
15
6G1421770000
Rubber, handle
Loading…

↗
16
6J8421370000
Indicator, throttle
Loading…

↗
17
9026902M0900
Rivet(6l5)
Loading…

↗
18
905012321500
Spring (655)
Loading…

↗
19
929901060000
Washer, plate
Loading…

↗
20
986800552500
Ybs53-525 screw,flat head
Loading…

↗
21
903860803200
Bushing (650)
Loading…

↗
22
6G1421380100
Lever, throttle
Loading…

↗
23
6E0421590200
Stay
Loading…

↗
24
985800501200
Screw,pan head (646)
Loading…

↗
25
6J8263010000
Throttle cable assembly
Loading…

↗
27
6J8441250000
Lever, shift rod
Loading…

↗
28
682441320000
Bushing
Loading…

↗
29
916903001800
926-51502-00 pin, spring (700)
Loading…

↗
30
9038606M1200
Bushing (688)
Loading…

↗
31
6J8441240000
Link, shift rod
Loading…

↗
32
929900620000
Ybs66-6 washer, plain
Loading…

↗
33
914902001500
Pin, cotter (648)
Loading…

↗
