FT9.9DMHSL (2001)
Steering

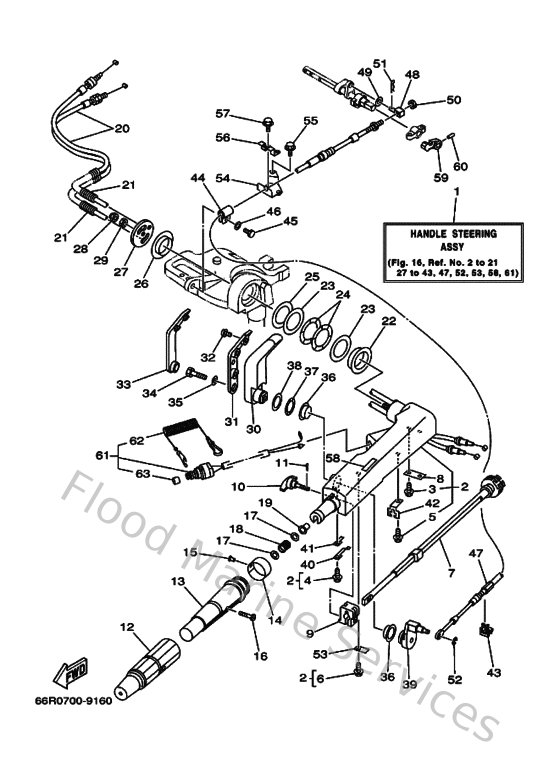

Diagram: Steering
Parts List
Reference
Description
Price
1
66RW0084014D
Handle steering assembly
Loading…
↗
2
66R42101014D
Handle, steering
Loading…
↗
3
9010906M8600
Bolt
Loading…
↗
4
9010906M8000
Bolt
Loading…
↗
7
66R421380000
Lever, Throttle
Loading…
↗
8
65W421590000
Stay
Loading…
↗
9
6G1421260000
Piece, friction
Loading…
↗
10
65W421250000
Bolt, friction adjusting
Loading…
↗
11
914901601000
Pin, cotter
Loading…
↗
12
66M421770000
Rubber, handle
Loading…
↗
13
66M421190000
Grip, steering handle
Loading…
↗
14
689421372000
Indicator, Throttle
Loading…
↗
15
9026902M0900
Rivet(6l5)
Loading…
↗
16
9014905M1300
Screw, countersunk
Loading…
↗
17
9020110M0200
Washer, plate(6g9)
Loading…
↗
18
905012321500
Spring (655)
Loading…
↗
19
903860803200
Bushing (650)
Loading…
↗
20
66M263110000
Cable, throttle 1
Loading…
↗
21
9044610M8700
Hose
Loading…
↗
22
66R421710000
Bushing
Loading…
↗
23
9020143M0000
Washer, plate
Loading…
↗
24
9020643M2200
Washer, wave
Loading…
↗
25
9020243M5700
Washer, plate
Loading…
↗
26
9038640M9900
Bush
Loading…
↗
27
65W421310100
Cover, handle steering
Loading…
↗
28
957801030000
Nut, nylon (6e5)
Loading…
↗
29
953801070000
Nut (682)
Loading…
↗
30
66R44111008D
Handle, gear shift
Loading…
↗
31
66R441730000
Lever, shift control
Loading…
↗
32
9015906M1800
Screw, with washer(6b0)
Loading…
↗
33
66R421290000
Bushing, rubber
Loading…
↗
34
970800803000
Bolt, hexagon (fj1)
Loading…
↗
35
929950860000
Washer, plain (663)
Loading…
↗
36
9038626MA300
Bush
Loading…
↗
37
9020626M2500
Washer, wave
Loading…
↗
38
9020226M5900
Washer, plate
Loading…
↗
39
66R441130000
Cam plate, handle
Loading…
↗
40
66R441160000
Spring
Loading…
↗
41
66R441180000
Bracket
Loading…
↗
42
66R485380000
Clamp, cable 1
Loading…
↗
43
63D485380000
Clamp, cable 1
Loading…
↗
44
9046508M7900
Clamp
Loading…
↗
45
970950601200
Bolt(gh1)
Loading…
↗
46
929900660000
Washer, plain (646)
Loading…
↗
47
66R483210000
Cable
Loading…
↗
48
66R483440000
Cable end, remote control
Loading…
↗
49
9020106M3100
Washer (6a0)
Loading…
↗
50
9017005M3800
Nut
Loading…
↗
51
904681800800
Clip 620436610000
Loading…
↗
52
990800460000
Circlip (eu0)
Loading…
↗
53
66R441140000
Stopper
Loading…
↗
54
66R485310000
Bracket Remote Control 1
Loading…
↗
56
66R485320000
Bracket, remote control 2
Loading…
↗
57
975950651000
Bolt, hexagon w/w deep recess
Loading…
↗
58
6E0441911100
Indicator, shift
Loading…
↗
61
65W825750000
Engine stop switch assembly
Loading…
↗
62
682825560000
Lanyard, stop switch
Loading…
↗
63
6898257Y0000
Cap
Loading…
↗
