E40XMH (1999)
Steering 2

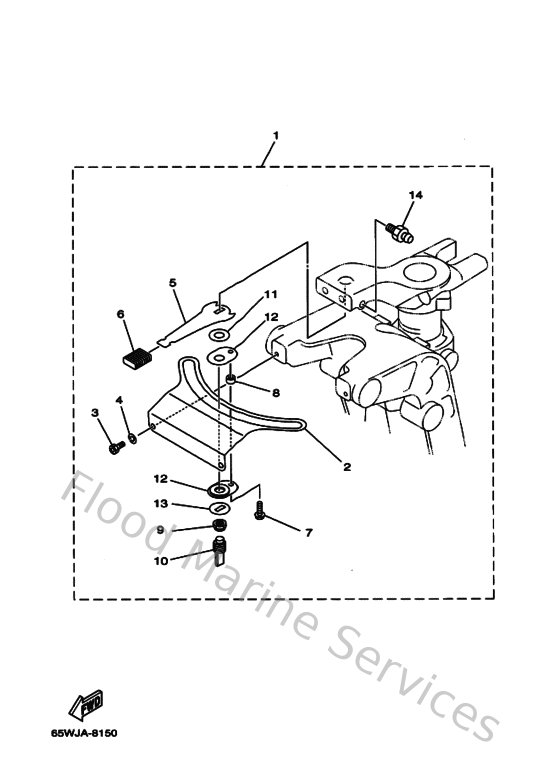

Diagram: Steering 2
Parts List
Reference
Description
Price
1
65W425080000
Steering friction assembly
Loading…
↗
2
65W425270000
Plate, friction
Loading…
↗
3
9010906M5000
Bolt(61a)
Loading…
↗
4
929900610000
Washer(6a1)
Loading…
↗
5
65W425610000
Knob, steering lock
Loading…
↗
6
689436330000
Cover, tilt lever
Loading…
↗
7
975950551600
Bolt, with washer
Loading…
↗
8
903870505400
Collar
Loading…
↗
9
9018510M1400
Nut, self-locking
Loading…
↗
10
65W425620000
Shaft, steering lock
Loading…
↗
11
9020210M5600
Washer, plate
Loading…
↗
12
65W425280000
Plate, friction
Loading…
↗
13
9020910M2600
Washer
Loading…
↗
14
9370006M0300
Nipple, grease(6a1)
Loading…
↗
