Yamaha Outboard Parts - Steering Guide Attachment - 20DMHO (1989) | Flood Marine

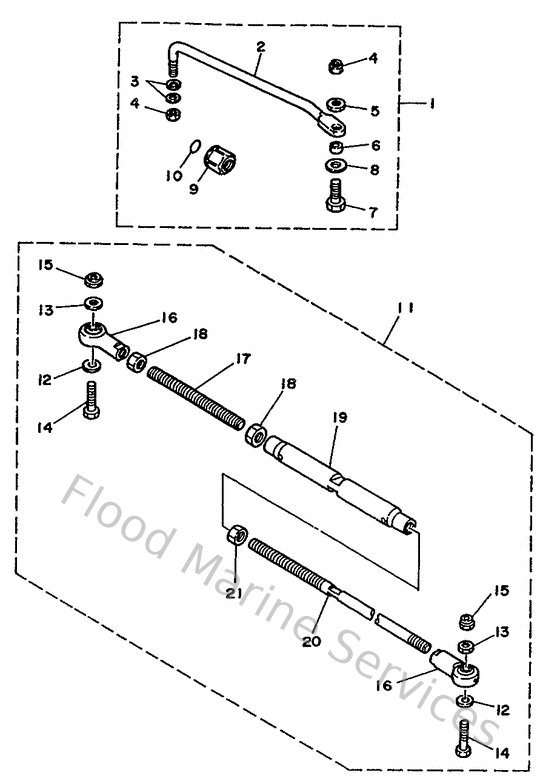

Diagram: Steering Guide Attachment

Diagram

Parts List

Reference
Description
Price


1
689613500200
Steering guide attachment kit
Loading…

↗
2
689613510100
Rod, steering
Loading…

↗
3
9020110M2000
Washer, plate (663)
Loading…

↗
4
9018509M0100
Nut, nylon (663)
Loading…

↗
5
9017009M0300
Nut (689)
Loading…

↗
6
9038710M4200
Coller (688)
Loading…

↗
7
9010109M6600
Bolt
Loading…

↗
8
9020110M6300
Washer, plate
Loading…

↗
9
6E5431450000
Cap, clamp bracket
Loading…

↗
10
932101627500
O-ring
Loading…

↗
11
688613010100
Twin kit
Loading…

↗
12
9020110M7600
Washer, plate (6e5)
Loading…

↗
13
9017009M0500
Nut, hexagon (6e5)
Loading…

↗
14
9010109M7000
Bolt (6e5)
Loading…

↗
16
6E5613030000
Steering axle comp.
Loading…

↗
17
6E5613150000
Tie bar, 2
Loading…

↗
18
953801470000
Nut (6e5)
Loading…

↗
19
6E5613130000
Adjuster
Loading…

↗
20
688613111100
Tie bar
Loading…

↗
21
9017014M0600
Nut (6e5)
Loading…

↗
