Yamaha Outboard Parts - TOP COWLING - LZ300AETO (2007) | Flood Marine

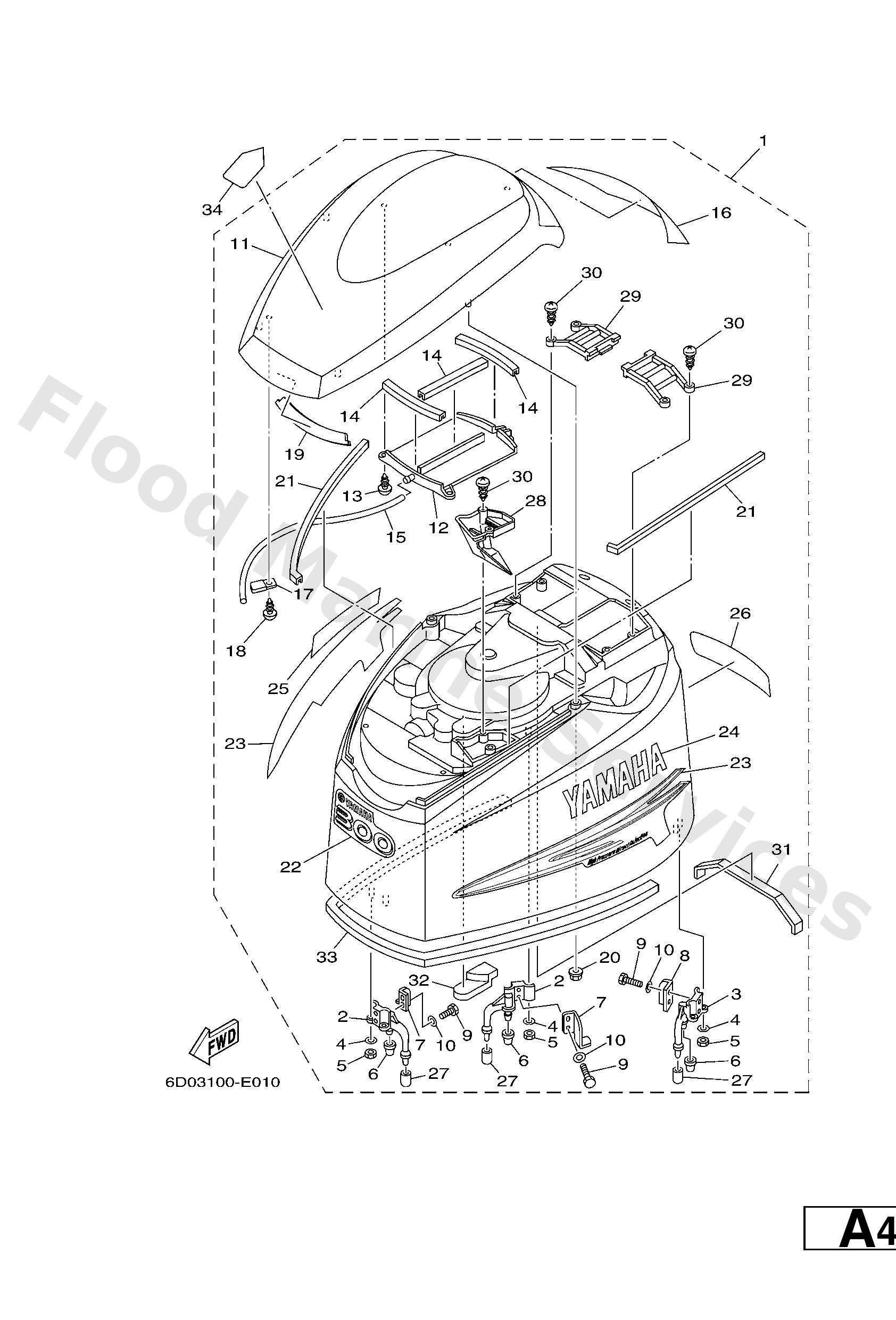

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6D042610018D
Top cowling assembly
Loading…

↗
2
68F426470194
Holder, clamp band
Loading…

↗
3
68F426480194
Holder, clamp band
Loading…

↗
4
9299006100
Washer(6a1)
Loading…

↗
5
9538006600
Nut(661)
Loading…

↗
6
68F4266300
Damper 2
Loading…

↗
7
60V4265101
Hook
Loading…

↗
8
60V4265200
Hook
Loading…

↗
9
9709506016
Bolt, hexagon deep recess
Loading…

↗
10
9299506600
Washer, plain (646)
Loading…

↗
11
60V42613008D
Molding, Air Duct
Loading…

↗
12
60V4262100
Mldg, Top
Loading…

↗
13
9778050616
Screw, pan head tapping (ak5)
Loading…

↗
14
60V4266400
Damper
Loading…

↗
15
9044511M33
Hose (l700)
Loading…

↗
16
60V4268700
Emblem, rear
Loading…

↗
17
9046208018
Clamp
Loading…

↗
18
9778050612
Screw, tapping(61a)
Loading…

↗
19
6D04262700
Damper, Form
Loading…

↗
20
9017906M24
Nut(6j8)
Loading…

↗
21
60V4266200
Damper
Loading…

↗
22
6D04267700
Graphic, front
Loading…

↗
23
60VW007000
-
Loading…

↗
24
60V4268100
Mark, cowling
Loading…

↗
25
60V4268200
Mark, cowling
Loading…

↗
26
6D04267800
Graphic, Rear
Loading…

↗
27
67F1344800
Cap
Loading…

↗
28
6D04262601
Louver, 1
Loading…

↗
29
60V4262610
Louver, 1
Loading…

↗
30
9016005005
Screw, round tapping
Loading…

↗
31
6D04263700
Damper, Form
Loading…

↗
32
6D04263710
Damper, Form
Loading…

↗
33
6D04261510
Seal
Loading…

↗
34
68F1343400
Label, Caution
Loading…

↗
