115BETO (2001)
Top Cowling

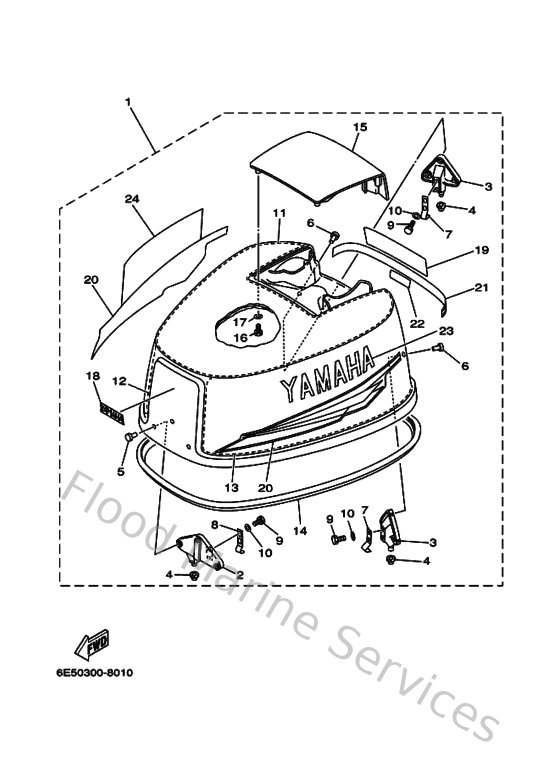

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6E542610C14D
Top cowling assembly
Loading…
↗
2
6E5426470094
Holder, clamp band
Loading…
↗
3
6E5426490194
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
9026606M0200
Rivet (697)
Loading…
↗
7
6E5426520000
Hook 2
Loading…
↗
8
688426520000
Hook 2
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
6E5426170000
Damper 1
Loading…
↗
12
6E5426190000
Damper, Form
Loading…
↗
13
6E5426270000
Damper, Form
Loading…
↗
14
6E5426150000
Seal
Loading…
↗
15
6E542613014D
Molding, Air Duct
Loading…
↗
18
68842677D000
Graphic, front
Loading…
↗
19
6E5426783100
Graphic Rear
Loading…
↗
20
6N7W00703000
Graphic Set
Loading…
↗
21
6E54267A3100
Graphic, Rear 2
Loading…
↗
22
6N7426783000
Graphic, Rear
Loading…
↗
23
6N7426813000
Mark Cowling
Loading…
↗
24
6N7426823000
Mark, Cowling
Loading…
↗
