200GETOL (1996)
Top Cowling

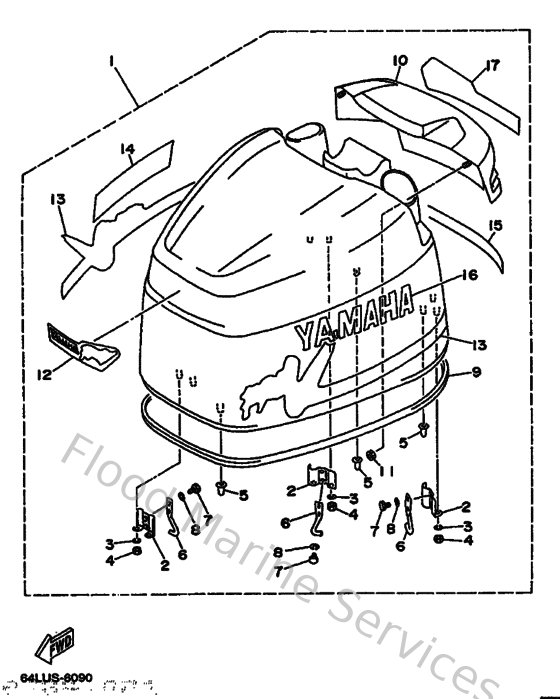

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
64M42610N0NA
Top Cowling Assembly
Loading…
↗
2
6R3426470000
Holder, clamp band
Loading…
↗
3
929950610000
Washer(6a1)
Loading…
↗
4
953800660000
Nut(661)
Loading…
↗
5
6R3426620000
Damper
Loading…
↗
6
64D428140000
Hook, clamp
Loading…
↗
7
970800601200
Bolt(gh1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
64D426150000
Seal
Loading…
↗
11
9017906M2400
Nut(6j8)
Loading…
↗
12
64K42677N000
Graphic, Front
Loading…
↗
14
64K42681N000
Mark, Cowling
Loading…
↗
15
64K4267AN000
Graphic, Rear 2
Loading…
↗
