225GETOL (2000)
Top Cowling

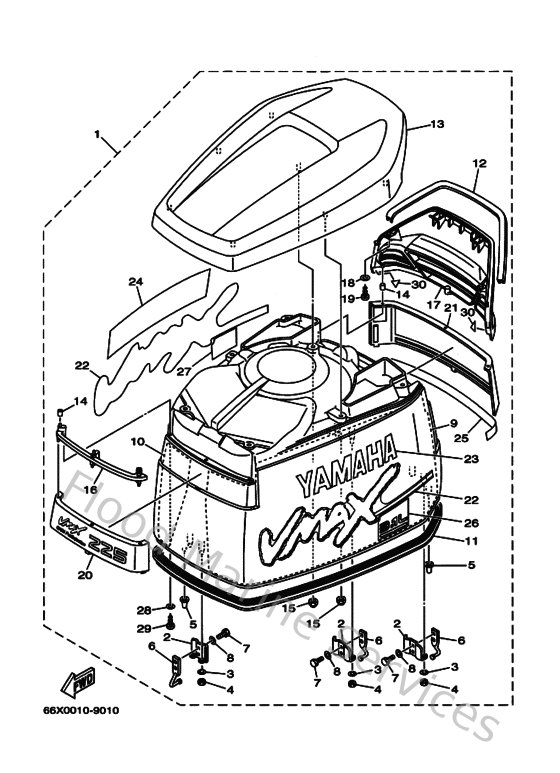

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
66K42610N1NA
Top Cowling assembly
Loading…
↗
2
6R3426470000
Holder, clamp band
Loading…
↗
3
929900610000
Washer(6a1)
Loading…
↗
4
953800660000
Nut(661)
Loading…
↗
5
6R3426620000
Damper
Loading…
↗
6
6R3428140000
Hook, clamp
Loading…
↗
7
970800601200
Bolt(gh1)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
61A426190200
Damper, Form
Loading…
↗
10
61A426270200
Damper Form
Loading…
↗
11
61A426150100
Seal
Loading…
↗
12
66K426620000
Damper
Loading…
↗
13
66K4261300NA
Molding, Air Duct
Loading…
↗
14
9038504M0500
Bush(6r2)
Loading…
↗
15
9017906M2400
Nut(6j8)
Loading…
↗
16
61A426260000
Louver, 1
Loading…
↗
17
66K4263600NA
Louver 2
Loading…
↗
18
929900520000
Ybs66-5 washer, plain
Loading…
↗
19
977805061600
Screw, pan head tapping (ak5)
Loading…
↗
20
66K42686N000
Emblem, Front
Loading…
↗
21
66K42687N000
Emblem, Rear
Loading…
↗
22
66KW0070N000
Graphic set
Loading…
↗
23
66K42682N000
Mark Cowling
Loading…
↗
25
66K4267AN000
Graphic, Rear 2
Loading…
↗
26
66K42683N100
Mark, Cowling
Loading…
↗
27
66K42684N100
Mark, Cowling
Loading…
↗
28
929900460000
Washer, plain (646)
Loading…
↗
29
977804052000
Ybs83-420 screw,panh,tapping
Loading…
↗
30
66K426280000
Seal
Loading…
↗
