30DMHO (1998)
Top Cowling

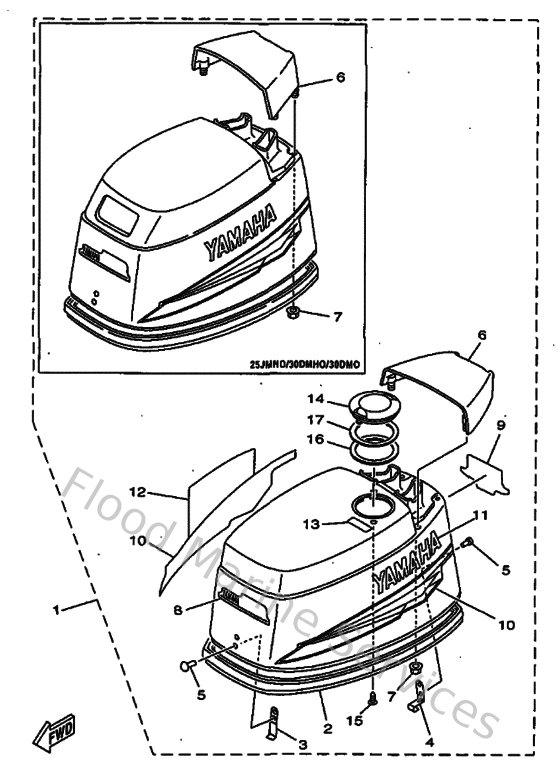

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6J842610A24D
Top cowling assembly
Loading…
↗
2
6J8426150000
Seal
Loading…
↗
3
6J8426510300
Hook
Loading…
↗
4
6J8426520000
Hook
Loading…
↗
5
9026604M0000
Rivet 2 (662)
Loading…
↗
6
6J842613104D
Molding, air duct
Loading…
↗
7
9017906M2400
Nut(6j8)
Loading…
↗
8
6K9426772000
Graphic, Front
Loading…
↗
9
6J8426781000
Graphic, rear
Loading…
↗
10
6J8W00701400
Graphic set
Loading…
↗
11
6J8426811100
Mark, cowling
Loading…
↗
12
6J8426821200
Mark, cowling
Loading…
↗
13
6J8134364000
Mark
Loading…
↗
14
6J82177H0000
Disk cap 2
Loading…
↗
15
9016103M0100
Screw, tapping(6j8)
Loading…
↗
16
6J8217320000
Seal 1
Loading…
↗
17
6J8217350000
Seal 2
Loading…
↗
