55BM (1992)
Top Cowling

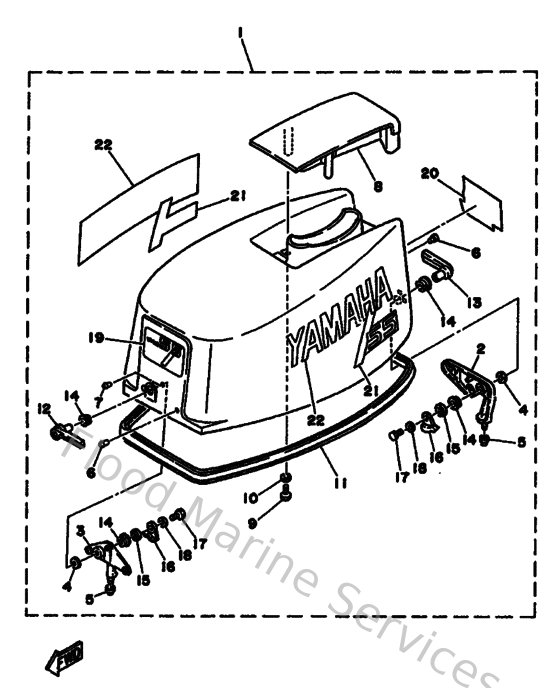

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
697426470094
Holder, clamp band
Loading…
↗
3
697426490094
Holder, clamp band
Loading…
↗
4
9020219M1000
Washer, plate (697)
Loading…
↗
5
663426620000
Damper
Loading…
↗
6
9026606M0200
Rivet (697)
Loading…
↗
9
973950601600
Bolt, hexagon deep recess
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
663426150200
Seal
Loading…
↗
12
697428151098
Lever, clamp 1
Loading…
↗
13
697428171098
Lever, clamp 3
Loading…
↗
14
9038613M3800
Bushing (697)
Loading…
↗
15
902061301900
Washer, wave 6264283200
Loading…
↗
16
663428160200
Lever, clamp 2
Loading…
↗
17
970130601200
Bolt(gh1)
Loading…
↗
18
9020106M0200
Washer,plate (6k8)
Loading…
↗
