F40BM (2001)
Top Cowling

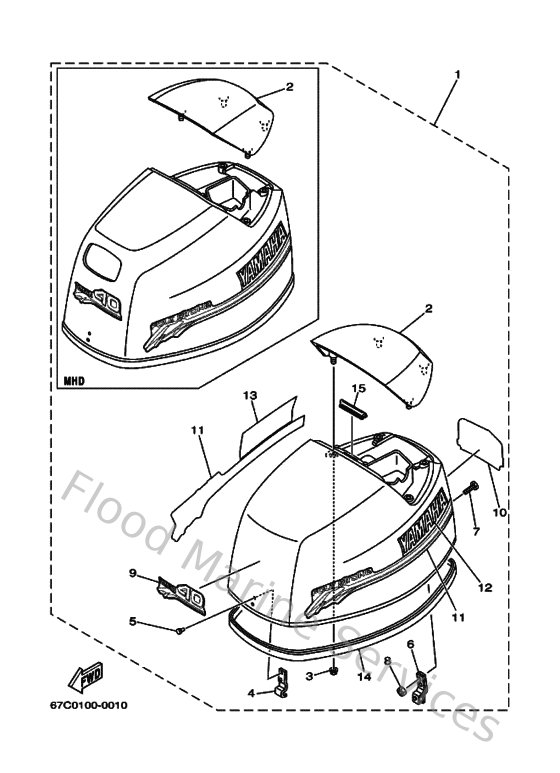

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
67C42610004D
Top Cowling assembly
Loading…
↗
2
67C42613004D
Molding, air duct
Loading…
↗
3
9017906M2400
Nut(6j8)
Loading…
↗
4
62Y426510000
Hook
Loading…
↗
5
9026606M0200
Rivet (697)
Loading…
↗
6
67C426520200
Hook
Loading…
↗
7
9010906MA400
Bolt
Loading…
↗
8
953800670000
Nut
Loading…
↗
9
6BG426770000
Graphic, front
Loading…
↗
10
62Y426782000
Graphic, front
Loading…
↗
11
67CW00700000
Graphic Set
Loading…
↗
12
992410024000
Emblem, yamaha
Loading…
↗
13
67C426820000
Emblem, yamaha
Loading…
↗
14
67C426150000
Seal
Loading…
↗
15
61N426280000
Seal
Loading…
↗
