F45A (1997)
Top Cowling

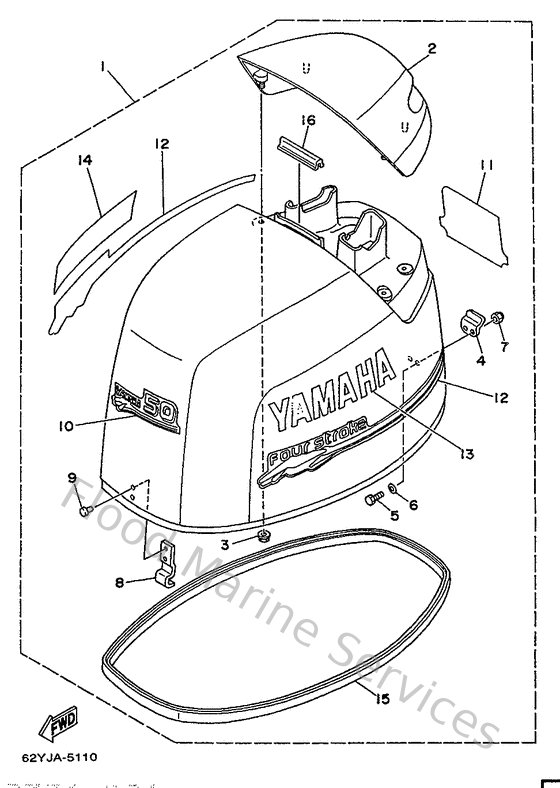

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
62Y42610004D
Top Cowling assembly
Loading…
↗
2
62Y42613004D
Molding, air duct
Loading…
↗
3
9017906M2400
Nut(6j8)
Loading…
↗
4
62Y426520000
Hook
Loading…
↗
5
970950501600
Bolt(6a1)
Loading…
↗
6
929900560000
Washer, plain (646)
Loading…
↗
7
957800530000
Nut, nylon (6k8)
Loading…
↗
8
62Y426510000
Hook
Loading…
↗
9
9026606M0200
Rivet (697)
Loading…
↗
10
60A426770000
Graphic, front
Loading…
↗
11
62Y426780000
Graphic, front
Loading…
↗
12
62YW00700000
Graphic Set
Loading…
↗
13
992410024000
Emblem, yamaha
Loading…
↗
14
62Y426820000
Emblem, yamaha
Loading…
↗
15
62Y426150000
Seal
Loading…
↗
16
61N426280000
Seal
Loading…
↗
