115BETO (1992)
Upper Casing

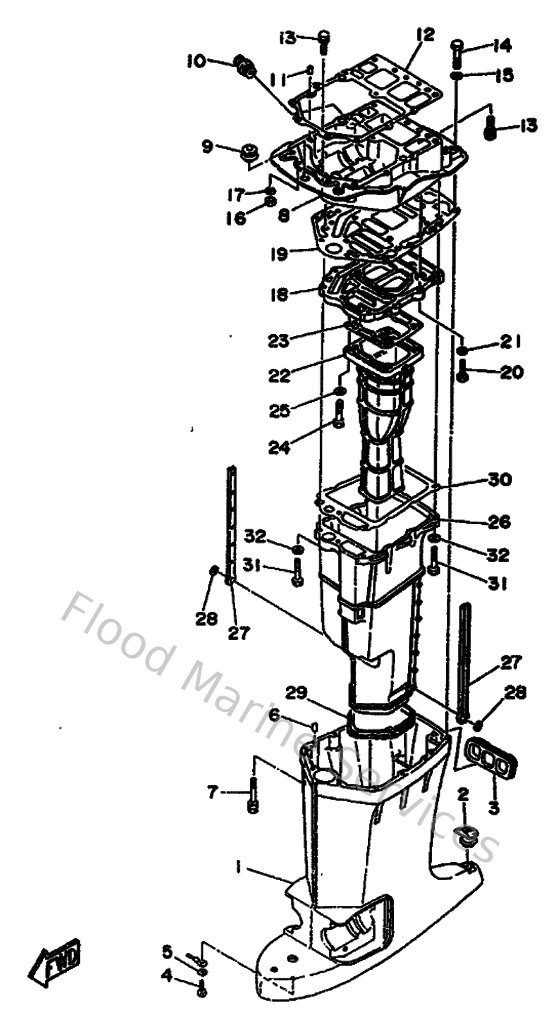

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
6E5451550000
Cap
Loading…
↗
3
6E5427690000
Seal, rubber
Loading…
↗
4
973950601000
Bolt
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
7
9011908M7800
Bolt, with washer
Loading…
↗
8
6G541137KT94
element
Loading…
↗
9
6E5427240000
Grommet
Loading…
↗
10
6G5125810000
Joint, hose
Loading…
↗
12
6G545113A000
Gasket, upper casing
Loading…
↗
13
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
14
970950804500
Bolt, hexagon
Loading…
↗
15
929900810000
Ybs67-8 washer, spring
Loading…
↗
16
953800870000
Nut(661)
Loading…
↗
20
973950803000
Bolt, hexagon (fj1)
Loading…
↗
21
929900860000
Washer, plain (663)
Loading…
↗
27
6E5147370000
Damper, muffler
Loading…
↗
28
9018305M0200
Nut, spring (6e5)
Loading…
↗
30
6E541135A000
Gasket, exhaust manifold
Loading…
↗
31
973950804500
Bolt, hexagon
Loading…
↗
