115BETO (2001)
Upper Casing

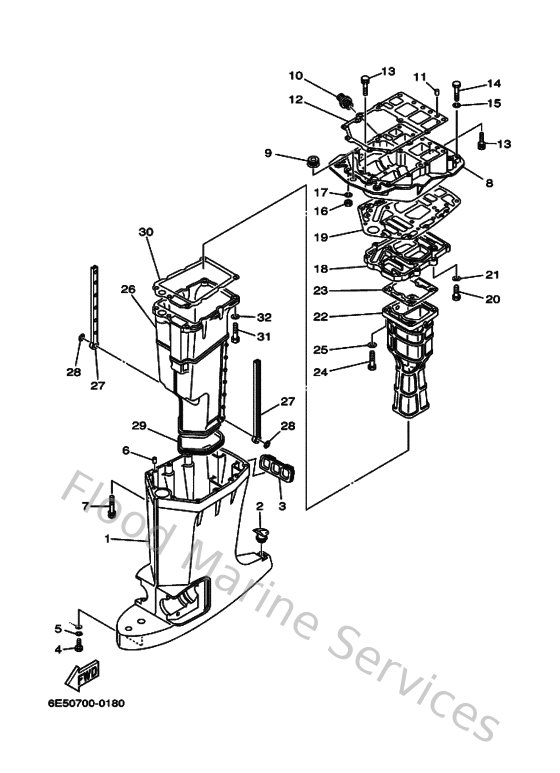

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6E545111028D
Casing, upper
Loading…
↗
2
6E5451550000
Cap
Loading…
↗
3
6E5427690000
Seal, rubber
Loading…
↗
4
970950601000
Bolt
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
7
9011908M7800
Bolt, with washer
Loading…
↗
8
6G5411370294
Guide, exhaust
Loading…
↗
9
6E5427240000
Grommet
Loading…
↗
10
6G5125810000
Joint, hose
Loading…
↗
12
6G545113A100
Gasket, upper casing
Loading…
↗
13
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
14
970800804500
Bolt, hexagon
Loading…
↗
15
929950810000
Ybs67-8 washer, spring
Loading…
↗
16
953800870000
Nut(661)
Loading…
↗
17
929900810000
Ybs67-8 washer, spring
Loading…
↗
18
6G541131015B
Manifold, ext. 1
Loading…
↗
19
6G545114A000
Gasket, upper casing
Loading…
↗
20
970800803000
Bolt, hexagon (fj1)
Loading…
↗
21
929950860000
Washer, plain (663)
Loading…
↗
22
6E541132105B
Manifold, exhaust
Loading…
↗
23
6E541134A000
Gasket, exhaust manifold
Loading…
↗
26
6E514711015B
Muffler 1
Loading…
↗
27
6E5147370000
Damper, muffler
Loading…
↗
28
9018305M0200
Nut, spring (6e5)
Loading…
↗
29
6E5451230000
Gasket, muffler
Loading…
↗
30
6E541135A000
Gasket, exhaust manifold
Loading…
↗
31
970950804500
Bolt, hexagon
Loading…
↗
