225GETOL (2000)
Upper Casing

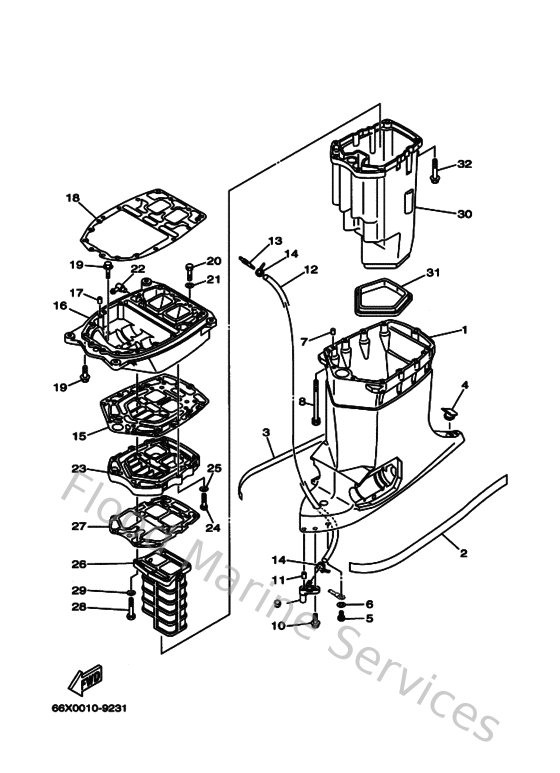

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
66K45111008D
Casing, Upper
Loading…
↗
2
6N9427914000
Mark 1
Loading…
↗
3
6N9427924000
Mark 2
Loading…
↗
4
61A451550000
Cap
Loading…
↗
5
970850601000
Bolt
Loading…
↗
6
929950660000
Washer, plain (646)
Loading…
↗
7
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
8
9011908M7800
Bolt, with washer
Loading…
↗
9
66K453780000
Nipple, hose
Loading…
↗
10
9011906M1700
Bolt, with washer
Loading…
↗
11
936061201900
Pin, dowel (614)
Loading…
↗
12
9044507MF000
Hose (l1160)
Loading…
↗
13
6E5835580000
End, nipple
Loading…
↗
14
904651009800
Clamp
Loading…
↗
15
61A45114A000
Gasket, upper casing
Loading…
↗
16
61A411371294
Guide, Exhaust
Loading…
↗
18
61A45113A000
Gasket, upper casing
Loading…
↗
19
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
20
970950803500
Bolt(70w)
Loading…
↗
21
929900860000
Washer, plain (663)
Loading…
↗
22
6H1113720000
Nipple, hose
Loading…
↗
23
61A41131005B
Manifold, ext. 1
Loading…
↗
26
61A41132015B
Manifold, exhaust
Loading…
↗
27
61A41134A000
Gasket, exhaust manifold
Loading…
↗
28
970950805000
Bolt (62k)
Loading…
↗
29
929950860000
Washer, plain (663)
Loading…
↗
30
66K14711005B
Muffler 1
Loading…
↗
31
66K451230000
Gasket, muffler
Loading…
↗
32
9011908M7400
Bolt, with washer(61a)
Loading…
↗
