25VMH (1996)
Upper Casing

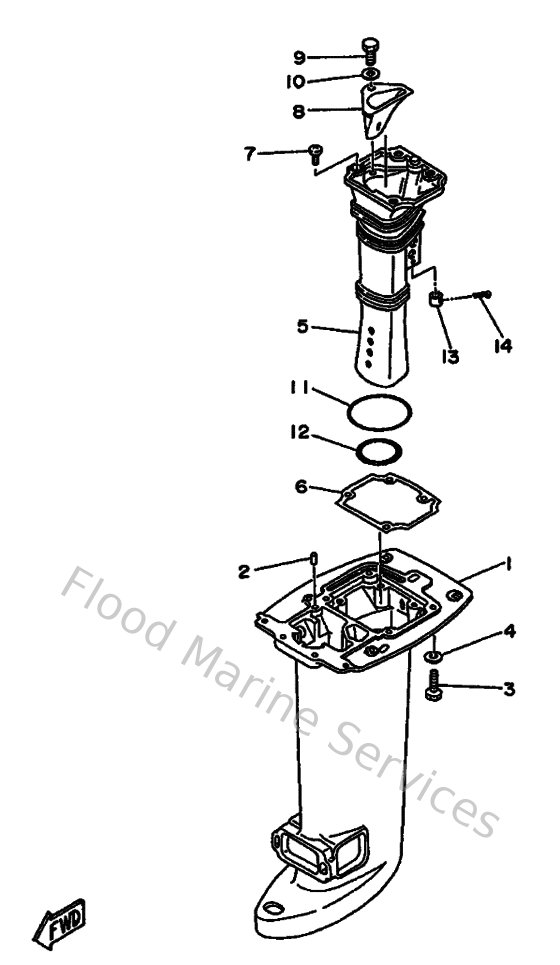

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
68945111114D
Casing, Upper
Loading…
↗
2
936061201900
Pin, dowel (614)
Loading…
↗
3
970800803000
Bolt, hexagon (fj1)
Loading…
↗
4
929950860000
Washer, plain (663)
Loading…
↗
5
6A841131105B
Manifold Exhaust
Loading…
↗
6
66441134A000
Gasket, exhaust manifold
Loading…
↗
7
985800601600
Screw pan head
Loading…
↗
8
689411370094
Guide Exhaust
Loading…
↗
9
970950802000
Bolt, hexagon
Loading…
↗
11
689411410000
Seal, exhaust 1
Loading…
↗
12
689411420000
Seal, exhust 2
Loading…
↗
13
689411350000
Gasket, Exhaust Manifold
Loading…
↗
14
914903003000
Pin, cotter
Loading…
↗
