30AMH (1985)
Upper Casing

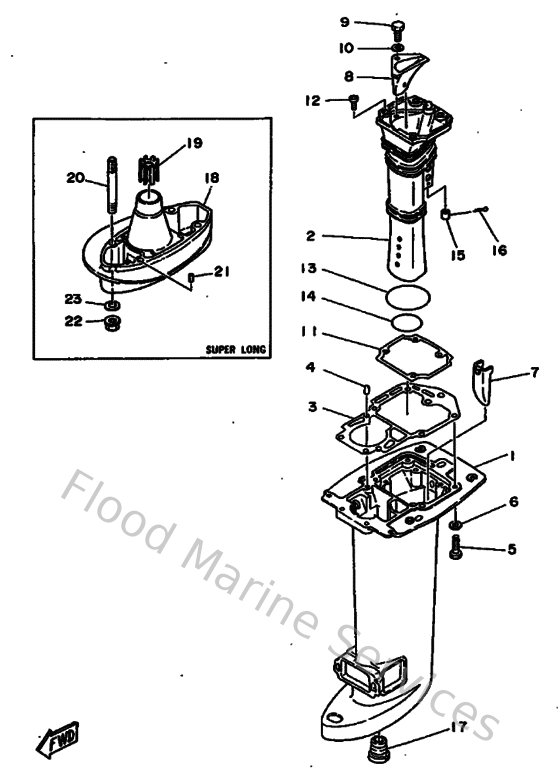

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6894511101EJ
Casing, Upper
Loading…
↗
2
68941131009M
Manifold Exhaust
Loading…
↗
3
689451130100
Gasket, upper casing
Loading…
↗
4
936061201900
Pin, dowel (614)
Loading…
↗
5
970800803000
Bolt, hexagon (fj1)
Loading…
↗
6
929900860000
Washer, plain (663)
Loading…
↗
8
689411370094
Guide Exhaust
Loading…
↗
9
973950802000
Bolt, hexagon
Loading…
↗
11
66441134A000
Gasket, exhaust manifold
Loading…
↗
12
978900601600
Screw pan head
Loading…
↗
13
689411410000
Seal, exhaust 1
Loading…
↗
14
689411420000
Seal, exhust 2
Loading…
↗
15
6A8411350000
Gasket, exhaust manifold 3
Loading…
↗
16
914903003000
Pin, cotter
Loading…
↗
17
689451270000
Seal
Loading…
↗
20
9011610M1000
Bolt, Stud
Loading…
↗
22
9017910M0300
Nut (689)
Loading…
↗
23
929901060000
Washer, plate
Loading…
↗
