40XMH (2001)
Upper Casing

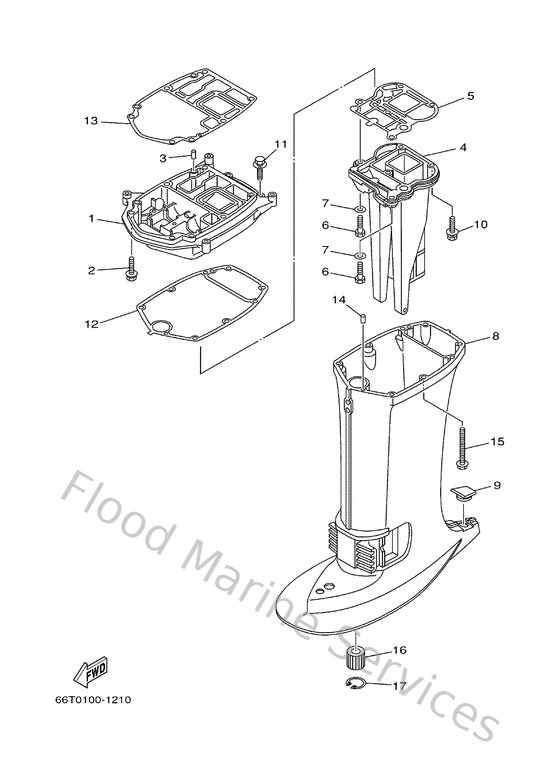

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
66T411370094
Guide, exhaust
Loading…
↗
2
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
66T41131105B
Manifold, ext. 1
Loading…
↗
5
66T41133A000
Gasket, exhaust manifold 1
Loading…
↗
6
970750803000
Bolt, hexagon (fj1)
Loading…
↗
7
929950860000
Washer, plain (663)
Loading…
↗
8
66T45111104D
Casing, upper
Loading…
↗
9
63D451550000
Cap
Loading…
↗
10
975750854500
Bolt, hexagon w/w deep recess
Loading…
↗
12
66T45114A000
Gasket, upper casing
Loading…
↗
13
66T45113A000
Gasket, upper casing
Loading…
↗
15
9011908M4200
Bolt, with washer
Loading…
↗
16
679453180000
Bushing, drive shaft 3
Loading…
↗
17
934203004200
Circlip (650)
Loading…
↗
