F20AM (2000)
Upper Casing

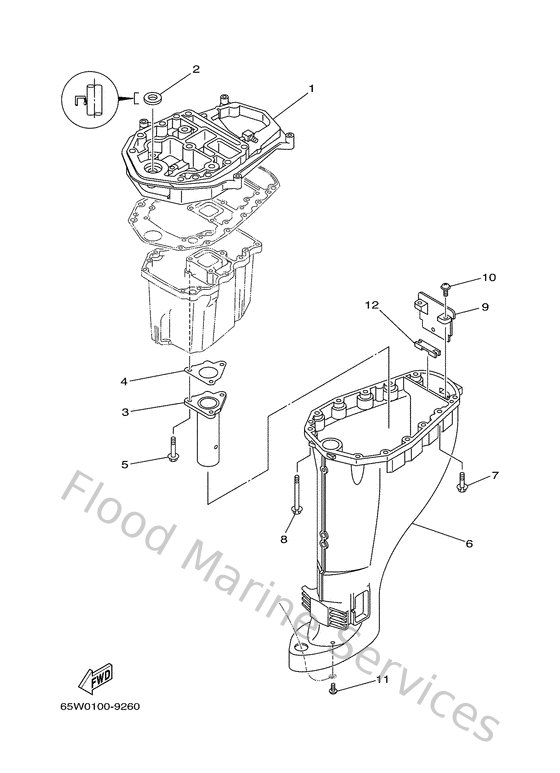

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
65W411370394
Guide, Exhaust
Loading…
↗
2
9310416M0100
Oil seal(6a8)
Loading…
↗
3
65W411310094
Manifold, Ext. 1
Loading…
↗
4
62Y411330000
Gasket, exhaust manifold 1
Loading…
↗
5
975750654500
Bolt, hexagon
Loading…
↗
6
6D545111108D
Casing, upper
Loading…
↗
7
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
8
9011908M8200
Bolt, with washer(697)
Loading…
↗
9
65W451510000
Cover, upper casing
Loading…
↗
10
979800521600
Screw, pan w/ plain
Loading…
↗
11
9015706M0600
Screw, pan head(6m7)
Loading…
↗
12
65W451280000
Seal 2
Loading…
↗
