FT9.9DMHSL (2000)
Upper Casing

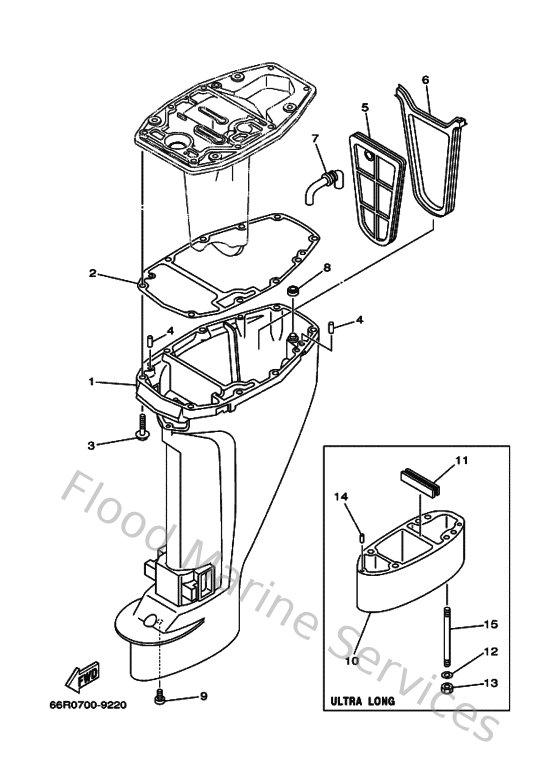

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
66M45111004D
Casing, upper
Loading…
↗
2
66M451130000
Gasket, upper casing
Loading…
↗
3
975750854500
Bolt, hexagon w/w deep recess
Loading…
↗
4
936061201900
Pin, dowel (614)
Loading…
↗
5
66M451260000
Plate, Seal Damper
Loading…
↗
6
66M451150000
Gasket, upper casing
Loading…
↗
7
66M451360000
Pipe
Loading…
↗
8
66M451280000
Seal 2
Loading…
↗
9
9015706M0600
Screw, pan head(6m7)
Loading…
↗
10
66R45211204D
Extension
Loading…
↗
11
63V451270000
Seal
Loading…
↗
12
929900860000
Washer, plain (663)
Loading…
↗
13
953800860000
Nut (661)
Loading…
↗
14
9360412M0700
Pin, dowel (688)
Loading…
↗
15
9011608M6200
Bolt, stud
Loading…
↗
